2D Sensors

sensor • 2d

Collision 2D

2D

Detects collisions via an Area2D node located by name.\n\nType the node name (not the full path) into 'Area Node Name'.

Menu Add Logic Brick → Sensors

Source


         sensors/2d/collision_2d_sensor.gd

Options

Property	Details
`area_node_name`	Area Node Name
`detection_mode`	Detection Mode Choices: Entered,Exited,Overlapping Default: `entered`
`detect_bodies`	Detect Bodies Default: `true`
`detect_areas`	Detect Areas Default: `false`
`filter_type`	Filter Type Choices: Any,Group,Name Default: `any`
`filter_value`	Filter Value
`invert`	Invert Default: `false`

Using this brick

Typical uses

Start a logic chain when detects collisions via an Area2D node located by name.\n\nType the node name (not the full path) into 'Area Node Name'.
Gate an action through a Controller so multiple conditions can be combined.
Use it as the event or condition at the beginning of a reusable chain.

Example chain

Collision 2D Controller Choose an actuator

Tip Use Invert when the opposite condition is easier to express than rebuilding the chain with different logic.

Common mistake Leaving filters too broad can make unrelated nodes activate the sensor. Test the narrowest useful filter first.

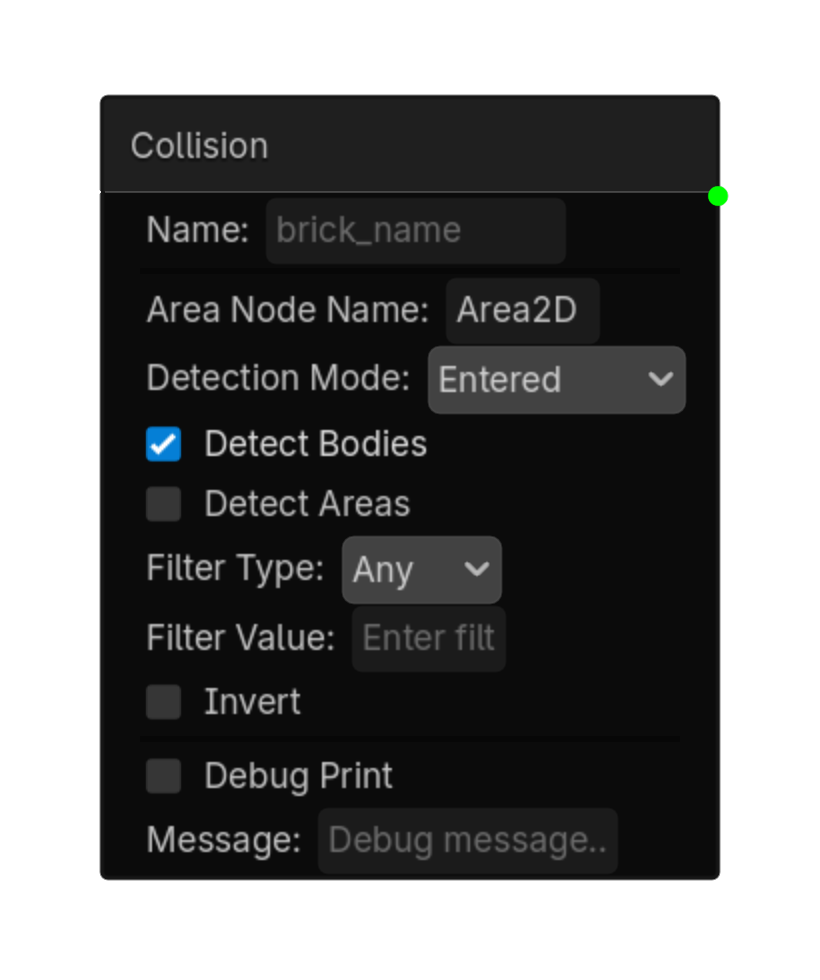

Collision 2D screenshot placeholder — **Collision 2D screenshot**

sensor • 2d

Movement 2D

2D

Detects if a 2D node is moving in specific directions.\nCheck which directions to monitor.\nActive when any checked direction moves past the threshold.

Menu Add Logic Brick → Sensors

Source


         sensors/2d/movement_2d_sensor.gd

Options

Property	Details
`all_axis`	All Axis Default: `false`
`pos_x`	Pos X Default: `false`
`neg_x`	Neg X Default: `false`
`pos_y`	Pos Y Default: `false`
`neg_y`	Neg Y Default: `false`
`threshold`	Threshold Default: `0.1`
`use_local_axes`	Use Local Axes Default: `false`
`ignore_platform_motion`	Ignore Platform Motion Default: `true`
`invert`	Invert Default: `false`

Using this brick

Typical uses

Start a logic chain when detects if a 2D node is moving in specific directions.\nCheck which directions to monitor.\nActive when any checked direction moves past the threshold.
Gate an action through a Controller so multiple conditions can be combined.
Use it as the event or condition at the beginning of a reusable chain.

Example chain

Movement 2D Controller Choose an actuator

Tip Use Invert when the opposite condition is easier to express than rebuilding the chain with different logic.

Common mistake A sensor only detects a condition. It does not perform an action until it is connected through a Controller to an Actuator.

Movement 2D screenshot placeholder — **Movement 2D screenshot**

sensor • 2d

Physics 2D

2D

Checks CharacterBody2D collision state: on floor, on wall, or on ceiling.\nUse this for jump checks, wall checks, ceiling bumps, and platformer logic.

Menu Add Logic Brick → Sensors

Source


         sensors/2d/physics_2d_sensor.gd

Options

Property	Details
`contact_type`	Contact Type Choices: On Floor,On Wall,On Ceiling Default: `On Floor`
`invert`	Invert Default: `false`
`require_contact_loss_first`	Require Contact Loss First Default: `false`

Using this brick

Typical uses

Start a logic chain when checks CharacterBody2D collision state: on floor, on wall, or on ceiling.\nUse this for jump checks, wall checks, ceiling bumps, and platformer logic.
Gate an action through a Controller so multiple conditions can be combined.
Use it as the event or condition at the beginning of a reusable chain.

Example chain

Physics 2D Controller Choose an actuator

Tip Use Invert when the opposite condition is easier to express than rebuilding the chain with different logic.

Common mistake A sensor only detects a condition. It does not perform an action until it is connected through a Controller to an Actuator.

Physics 2D screenshot placeholder — **Physics 2D screenshot**

sensor • 2d

Proximity 2D

2D

Detects objects within a distance and optional angle.\nUses groups to filter which objects are detected.

Menu Add Logic Brick → Sensors

Source


         sensors/2d/proximity_2d_sensor.gd

Options

Property	Details
`target_group`	Target Group
`distance`	Distance Default: `10.0`
`angle`	Angle Default: `360.0`
`axis`	Axis Choices: All,+X,-X,+Y,-Y,+Z,-Z Default: `all`
`detection_mode`	Detection Mode Choices: Any,All,None Default: `any`
`inverse`	Inverse Default: `false`
`store_object`	Store Object Default: `false`
`object_variable`	Object Variable

Using this brick

Typical uses

Start a logic chain when detects objects within a distance and optional angle.\nUses groups to filter which objects are detected.
Gate an action through a Controller so multiple conditions can be combined.
Use it as the event or condition at the beginning of a reusable chain.

Example chain

Proximity 2D Controller Choose an actuator

Tip Connect the sensor to a Controller even when only one condition is needed; this keeps the chain easy to expand later.

Common mistake A sensor only detects a condition. It does not perform an action until it is connected through a Controller to an Actuator.

Proximity 2D screenshot placeholder — **Proximity 2D screenshot**

sensor • 2d

Raycast 2D

2D

Detects along a RayCast2D. This can be used for objects, groups, walls, ground, or ledges.\nThe RayCast2D's direction, length, and collision mask are set on the RayCast2D node itself.

Menu Add Logic Brick → Sensors

Source


         sensors/2d/raycast_2d_sensor.gd

Options

Property	Details
`raycast_node_name`	Raycast Node Name Default: `RayCast2D` RayCast2D node name
`detect_mode`	Detect Mode Choices: Any,Group,Nothing Default: `any`
`group_filter`	Group Filter
`invert`	Invert Default: `false`

Using this brick

Typical uses

Start a logic chain when detects along a RayCast2D. This can be used for objects, groups, walls, ground, or ledges.\nThe RayCast2D's direction, length, and collision mask are set on the RayCast2D node itself.
Gate an action through a Controller so multiple conditions can be combined.
Use it as the event or condition at the beginning of a reusable chain.

Example chain

Raycast 2D Controller Choose an actuator

Tip Use Invert when the opposite condition is easier to express than rebuilding the chain with different logic.

Common mistake A sensor only detects a condition. It does not perform an action until it is connected through a Controller to an Actuator.

Raycast 2D screenshot placeholder — **Raycast 2D screenshot**

sensor • 2d

Always

3D 2D

Always logic brick.

Menu Add Logic Brick → Sensors

Source


         sensors/common/always_sensor.gd

Options

Property	Details
`enabled`	Enabled Default: `true`

Using this brick

Typical uses

Start a logic chain when always logic brick.
Gate an action through a Controller so multiple conditions can be combined.
Use it as the event or condition at the beginning of a reusable chain.

Example chain

Always Controller Choose an actuator

Tip Connect the sensor to a Controller even when only one condition is needed; this keeps the chain easy to expand later.

Common mistake A sensor only detects a condition. It does not perform an action until it is connected through a Controller to an Actuator.

Always screenshot placeholder — **Always screenshot**

sensor • 2d

Compare Variable

3D 2D

Compares a variable 's value.\nWorks with local , exported, and global variables.\nAutomatically checks GlobalVars if not found locally.

Menu Add Logic Brick → Sensors

Source


         sensors/common/variable_sensor.gd

Options

Property	Details
`variable_name`	Variable Name
`evaluation_type`	Evaluation Type Standard variable choices: Equal, Not Equal, Interval, Changed, Greater Than, Less Than, Greater or Equal, Less or Equal. Array choices (selected automatically for Array variables): Contains, Does Not Contain, Is Empty, Is Not Empty, Size Equals, Size Greater Than, Size Less Than, Changed. Default: `equal`
`value`	Value
`min_value`	Min Value
`max_value`	Max Value
`item_type`	Array Item Type Shown for Contains and Does Not Contain. Choices: bool, int, float, String, Vector2, Vector3.

Array comparisons When variable_name matches an Array variable, the Evaluation Type menu changes automatically. Use Contains or Does Not Contain to test for an item, the empty checks to test whether the Array has any items, or the size checks to compare the number of items. The selected Array Item Type determines how the entered value is interpreted.

Using this brick

Typical uses

Start a logic chain when compares a variable's value.\nWorks with local, exported, and global variables.\nAutomatically checks GlobalVars if not found locally.
Gate an action through a Controller so multiple conditions can be combined.
Capture or compare a value as part of variable-driven gameplay logic.

Example chain

Compare Variable Controller Choose an actuator

Tip Connect the sensor to a Controller even when only one condition is needed; this keeps the chain easy to expand later.

Common mistake A sensor only detects a condition. It does not perform an action until it is connected through a Controller to an Actuator.

Compare Variable screenshot placeholder — **Compare Variable screenshot**

sensor • 2d

Delay

3D 2D

Waits for Delay seconds, then stays active for Duration seconds.\nRepeat cycles the whole sequence.

Menu Add Logic Brick → Sensors

Source


         sensors/common/delay_sensor.gd

Options

Property	Details
`delay`	Delay Default: `0.0`
`duration`	Duration Default: `0.0`
`repeat`	Repeat Default: `false`

Using this brick

Typical uses

Start a logic chain when waits for Delay seconds, then stays active for Duration seconds.\nRepeat cycles the whole sequence.
Gate an action through a Controller so multiple conditions can be combined.
Use it as the event or condition at the beginning of a reusable chain.

Example chain

Delay Controller Choose an actuator

Tip Connect the sensor to a Controller even when only one condition is needed; this keeps the chain easy to expand later.

Common mistake A sensor only detects a condition. It does not perform an action until it is connected through a Controller to an Actuator.

Delay screenshot placeholder — **Delay screenshot**

sensor • 2d

Input Map

3D 2D

Detects input actions from Project > Input Map.\nSupports button presses, any-action checks, and analog joystick axis input.

Menu Add Logic Brick → Sensors

Source


         sensors/common/input_map_sensor.gd

Options

Property	Details
`input_mode`	Input Mode Choices: Pressed,Just Pressed,Just Released,Any Pressed,Any Just Pressed,Any Just Released,Axis Default: `pressed`
`action_name`	Action Name Default: `ui_accept`
`negative_action`	Negative Action
`positive_action`	Positive Action
`invert`	Invert Default: `false`
`store_in`	Store In
`deadzone`	Deadzone Default: `0.1`

Using this brick

Typical uses

Start a logic chain when detects input actions from Project > Input Map.\nSupports button presses, any-action checks, and analog joystick axis input.
Gate an action through a Controller so multiple conditions can be combined.
Capture or compare a value as part of variable-driven gameplay logic.

Example chain

Input Map Controller Choose an actuator

Tip Use Invert when the opposite condition is easier to express than rebuilding the chain with different logic.

Common mistake A sensor only detects a condition. It does not perform an action until it is connected through a Controller to an Actuator.

Input Map screenshot placeholder — **Input Map screenshot**

sensor • 2d

Mouse

3D 2D

Detects mouse buttons, wheel, movement, and object hover

Menu Add Logic Brick → Sensors

Source


         sensors/common/mouse_sensor.gd

Options

Property	Details
`detection_type`	Detection Type Choices: Button,Wheel,Movement,Hover Object,Hover Any Default: `button`
`mouse_button`	Mouse Button Choices: Left,Right,Middle Default: `left`
`button_state`	Button State Choices: Pressed,Released,Held Default: `pressed`
`wheel_direction`	Wheel Direction Choices: Up,Down Default: `up`
`movement_threshold`	Movement Threshold Default: `0.1`
`target_node_name`	Target Node Name Default: `self`

Using this brick

Typical uses

Start a logic chain when detects mouse buttons, wheel, movement, and object hover.
Gate an action through a Controller so multiple conditions can be combined.
Use it as the event or condition at the beginning of a reusable chain.

Example chain

Mouse Controller Choose an actuator

Tip Connect the sensor to a Controller even when only one condition is needed; this keeps the chain easy to expand later.

Common mistake A sensor only detects a condition. It does not perform an action until it is connected through a Controller to an Actuator.

Mouse screenshot placeholder — **Mouse screenshot**

sensor • 2d

Random

3D 2D

Activates randomly each time it is evaluated.\\nPair with a Delay Sensor to control how often it rolls.\\nUseful for random behaviors, AI variation, and loot rolls.

Menu Add Logic Brick → Sensors

Source


         sensors/common/random_sensor.gd

Options

Property	Details
`trigger_mode`	Trigger Mode Choices: Chance,Value,Range Default: `chance`
`chance_percent`	Chance Percent Choices: 0.0,100.0,0.1 Default: `10.0`
`target_value`	Target Value Default: `0`
`target_min`	Target Min Default: `0`
`target_max`	Target Max Default: `100`
`use_seed`	Use Seed Default: `false`
`seed_value`	Seed Value Default: `0`
`store_value`	Store Value Default: `false`
`value_variable`	Value Variable

Using this brick

Typical uses

Start a logic chain when activates randomly each time it is evaluated.\\nPair with a Delay Sensor to control how often it rolls.\\nUseful for random behaviors, AI variation, and loot rolls.
Gate an action through a Controller so multiple conditions can be combined.
Capture or compare a value as part of variable-driven gameplay logic.

Example chain

Random Controller Choose an actuator

Tip Connect the sensor to a Controller even when only one condition is needed; this keeps the chain easy to expand later.

Common mistake A sensor only detects a condition. It does not perform an action until it is connected through a Controller to an Actuator.

Random screenshot placeholder — **Random screenshot**

sensor • 2d

Signal

3D 2D

Detects signals sent by a Signal Actuator.\nListens for a specific subject.

Menu Add Logic Brick → Sensors

Source


         sensors/common/message_sensor.gd

Options

Property	Details
`subject`	Subject
`match_mode`	Match Mode Choices: Exact,Contains,Starts With Default: `exact`
`response_delay`	Response Delay Default: `0.0`

Using this brick

Typical uses

Start a logic chain when detects signals sent by a Signal Actuator.\nListens for a specific subject.
Gate an action through a Controller so multiple conditions can be combined.
Use it as the event or condition at the beginning of a reusable chain.

Example chain

Signal Controller Choose an actuator

Tip Connect the sensor to a Controller even when only one condition is needed; this keeps the chain easy to expand later.

Common mistake A sensor only detects a condition. It does not perform an action until it is connected through a Controller to an Actuator.

How sensors fit into a chain

Collision 2D

Options

Typical uses

Example chain

Related bricks

Movement 2D

Options

Typical uses

Example chain

Related bricks

Physics 2D

Options

Typical uses

Example chain

Related bricks

Proximity 2D

Options

Typical uses

Example chain

Related bricks

Raycast 2D

Options

Typical uses

Example chain

Related bricks

Always

Options

Typical uses

Example chain

Related bricks

Compare Variable

Options

Typical uses

Example chain

Related bricks

Delay

Options

Typical uses

Example chain

Related bricks

Input Map

Options

Typical uses

Example chain

Related bricks

Mouse

Options

Typical uses

Example chain

Related bricks

Random

Options

Typical uses

Example chain

Related bricks

Signal

Options

Typical uses

Example chain

Related bricks
